CHRIS/Proba Geometric Correction

CHRIS/Proba Geometric Correction

Introduction

CHRIS/Proba is a system designed for multi-angular image acquisition of a given target, with the capability of along-track and across-track pointing increasing its overpass frequency. In order to increase the radiometric signal the platform performs a slow-down manoeuvre consisting in rotating while scanning to keep the target for a longer time under the sensor. Besides, the scan direction is reversed during the acquisition of the second and fourth images to reduce the acceleration needed for the operation. These characteristics introduce strong perspective distortions, especially for the first and last images with larger observation zenith angles, which are difficult to remove by other approaches.

Many applications require the images to be geometrically referenced and/or rectified. In particular for those that make use of multi-angular information the geometric processing must be very accurate.

Algorithm

The proposed approach for the geometric correction of CHRIS/Proba is based on the parametric modelling of the acquisition process. It makes use of the satellite's position, velocity and pointing at the moment of line acquisition, projecting the line of sight onto the Earth's surface to calculate the geographical coordinate of each pixel. The coordinate map can then be used for the ortho-rectification of the images.

In principle the algorithm does not require any user input, since it is based on the geometry of acquisition. Unfortunately the Proba platform does have a pointing problem, which has not been identified yet. Therefore, at least a single ground control point (GCP) per image is required in order to compensate for the de-pointing, although the precision of the single-GCP correction is not good enough. Three GCPs per image provide satisfactory results, and nine well distributed GCPs per image result in an excellent co-registration of all 5 images, for the tested cases (all in Barrax).

The choice of the orbital parametric approach is based on the particular requirements the acquisition process of CHRIS/Proba imposes on other existing methods for geometric correction.

The GCP method requires a quite large number of points for an accurate geometric correction (at least 30, and more than 50 for high accuracy over flat terrain), and they need to be evenly distributed. These requirements exists for each image in the acquisition set

An alternative method is based on the photogrammetric equation applied to the five images, but it makes the assumption that each image is acquired instantly from a fixed point in space, which is not the case for CHRIS/Proba. In order to compensate this difference in the acquisition assumptions the use of GCPs distributed through the image is necessary

The overlap of the five images is not too high, around 65% (estimate) due to de-pointing, but even with perfect pointing, larger observation angles provide different spatial coverage due to perspective. Therefore the co-registration of the five images is only possible in a portion of each image, which reduces the accuracy in the excluded areas. This makes necessary a high-resolution reference image for the selection of GCPs.

Even if the requirements of these methods were met, there is the unsolved problem of open water targets, where it is not possible to use GCP at all, except for very few pixels in the best case. The same situation appears in the case of cloudy images, rendering useless scenes that might have still some useful portions.

The inputs needed by the algorithm are: telemetry with the satellite position, velocity and image timing, target centre coordinate, and, for doing an ortho-rectification, a local digital elevation model (DEM). The outputs of this algorithm consist on the coordinates map in IGM files, or the rectified images if so desired. As side product, observation angle maps can be produced for each image.

It must be noted that the method requires the corresponding telemetry for each acquisition.

An archive of updated telemetry data is accesible at http://194.78.233.110/products/data/CHRIS_Additional_data/index.html
Older packed telemetry data can be downloaded from http://step.esa.int/auxdata/chris-box/Archive_CHRIS_Telemetry_Data_20201028.zip
The algorithm requires that archive is available unpacked on the local file system.

Note:
The server uses an old security protocol. That's why users will see warnings when accessing the server. But after accepting the risks the data is accessible. At the time of writing the easiest access is possible with the Firefox browser. An update is already planned.

In order to find the corresponding telemetry files for a given acquisition the user has to follow these steps:

1. Get [Target Name] and [Date] from the image meta data; the dashes '-' from the date have to be ignored. For example, for image CHRIS_MB_080501_9BE1_41 the [Target Name] is Manly-Beach and the [Date] is 20080501, where the dashes '-' have been removed in the meta data date value, which is 2008-05-01
2. Connect to the telemetry archive
3. Use a filter *.[Target Name]?????_CHRIS_center_times_[Date]_* to locate the Image Center Times file. For the example above it finds the file Pass9301.Manly-Beach_39905_CHRIS_center_times_20080501_65534
4. ????? should match a five-digit string to be used as reference [Ref]. For the example above it is 39905
5. Use a filter CHRIS_[Ref]_*.tar.gz to locate the compressed GPS file. For the example above it finds CHRIS_39905_39909.tar.gz
6. From the compressed GPS file extract the file CHRIS_[Ref]_PROBA1_GPS_Data, where PROBA's GPS position and velocity data are recorded. The second file in the compressed GPS file PPU_UPLOAD_* can be ignored. For the example above extract the file CHRIS_39905_39909_PROBA1_GPS_Data

Getting started

First download and unpack the CHRIS telemetry data, which are a prerequisite for the geometric correction. Then carry out the geometric correction:

1. Open a CHRIS/proba atmosphere-corrected product, or any derived product (the geometric correction is applicable to any CHRIS product, but the geometric correction marks the last step in the processing, i.e. the user can geo-correct a noise-corrected image, but then cannot process the geo-corrected image with the CHRIS-Box tools any further)
2. Define at least three GCPs near to the first, central, and last rows in the image; additional GCPs yield better results. It is recommended to place nine GCP evenly distributed through the image

       +---+---+---+
       | 1 | 2 | 3 |
       +---+---+---+
       | 4 | 5 | 6 |
       +---+---+---+
       | 7 | 8 | 9 |
       +---+---+---+


   Besides latitude and longitude, the user may specify a GCP's altitude by adding something like Madrid (alt[m] = 750) to the description of a GCP. This is optional and not required, but improves the calculation of the instrument's pointing especially in areas with strong topography. If not provided, the target's altitude is used.
3. If the target has a flat topography the user may check the 'Use target altitude' option in the processing parameters. If the target is not flat, results might still be fine when this option is checked
4. Run the geometric correction tool
5. Run the ortho-rectification tool on the geo-corrected product in order to obtain an ortho-rectified product; this must never be done when the 'Use target altitude' option has been checked.

Instructions on how to use a DEM can be found in the SNAP Help by searching for DEM.

User Interface

The geometric correction adds grids for latitude and longitude, as well as view azimuth and zenith angles to an existing CHRIS/Proba product.

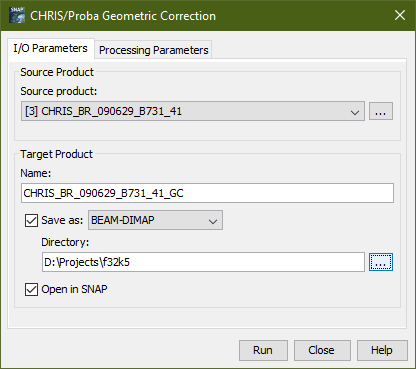

Selecting the Geometric Correction... command from the menu pops up the following dialog:

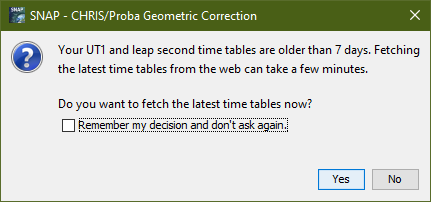

The user will be asked to update the auxiliary time tables, which are included in the module. The required time tables are updated at ftp://hpiers.obspm.fr/iers/bul/bulc/Leap_Second.dat
The user must let the time tables be updated regularly, if he works with recent CHRIS/Proba products.

Source Product Group

Name: Here the user specifies the name of the source product. The combo box presents a list of all products open in SNAP. The user may select one of these or, by clicking on the button next to the combo box, choose a product from the file system.

Target Product Group

Name: Used to specify the name of the target product.

Save as: Used to specify whether the target product should be saved to the file system. The combo box presents a list of file formats, currently BEAM-DIMAP, GeoTIFF, and HDF5. The text field allows to specify a target directory.

Open in SNAP: Used to specify whether the target product should be opened in SNAP. When the target product is not saved, it is opened in SNAP automatically.

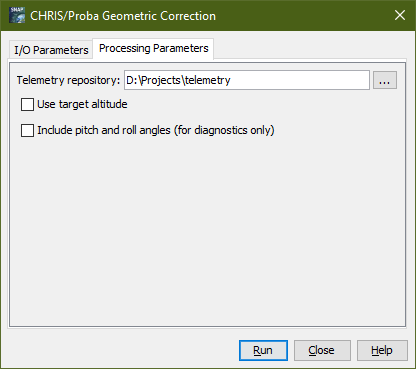

Processing Parameters Panel

Telemetry repository: This field is used to specify the directory, which contains the CHRIS telemetry data.
Note that the parent directory of the source product is searched for CHRIS telemetry data before the local repository is.

Use target altitude: This field is used to specify that the nominal target altitude shall be taken into account when calculating the longitude and latitude coordinates, i.e. the pixel lines-of-sight are intersected with a modified WGS-84 ellipsoid, which is increased by the nominal target altitude. Note that the resulting geo-coding is more accurate when option has been checked, but not suitable for ortho-rectification..

Include pitch and roll angles: This field is used to specify that the instrument pitch and roll angles, which are calculated, shall be included in the product. This option is for diagnostics only.

Button Group

Run Creates the target product. The geometric correction is actually deferred until the target band data are accessed, either by writing the product to the file system or by viewing the band data. When the Save as option is checked, the atmospheric correction is triggered automatically.

Close Closes the dialog.

Help Displays this page in SNAP Help.
