S2-RUT Region-of-Interest uncertainty

Introduction

The S2-RUT produces per-pixel uncertainty of ESA Sentinel-2 L1C MSI products at a specified confidence level. The uncertainty combination of different pixels in a Region-of-Interest (ROI) is not a trivial process. When combining the uncertainty from different pixels, the users should discard methods as the standard deviation of the mean or the straightforward combination of the pixels' uncertainty. Instead, the users need to consider the correlation between different pixels.

In order to calculate the uncertainty associated with a pixels' mean, two separate methods have been developed and they are separately explained in the following sections. More details can be found in the associated publication: [1]

Select and deselect contributors

The "select/deselect" method uses the capability of the S2-RUT to generate uncertainty images for selected uncertainty contributors to estimate the total uncertainty of the average reflectance of a ROI.

In this approach we assign each effect to being either correlated (not reduced by averaging over the ROI), or uncorrelated (reduced by averaging over the ROI) and select only the correlated effects, assuming that the uncorrelated effects become negligible at the scale of the ROI. Each effect is discussed in [1], which describes how decisions were made. Note that effects may be correlated in one dimension (e.g. spatial) and uncorrelated in another (e.g. temporal or spectral). The associated correlation should be evaluated experimentally if feasible by studying the combined variations of the quantities or using any available additional data pertaining to their interrelationship. Additionally, or in the absence of available data information based on experience and general knowledge can be utilised [2].

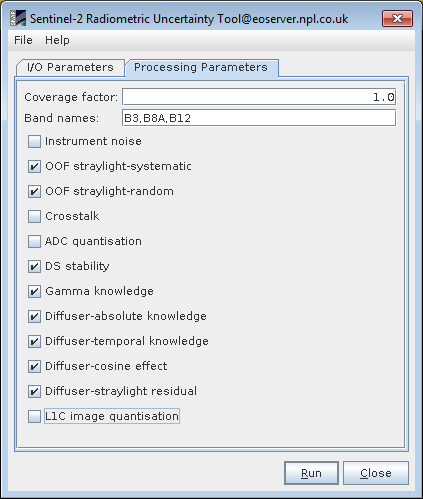

The method named "select/deselect" is intended to be as simple and quick as possible for the S2 L1C data users. In this method, the user interface incorporates a tick option to select individual effects, as shown below:

The user can run the S2-RUT with unselected instrument noise, Crosstalk, ADC_quantisation and L1C image quantisation since they are considered as nearly uncorrelated in time and space domain. In addition, the user can optionally unselect OOF straylight-random and Gamma knowledge since they are considered as correlated in time but uncorrelated in space.In such cases, the method can been adapted to produce two uncertainty images with the partially correlated contributions selected and deselected. The result is taken as the mean of the two ROI pixels for the two images.

In order to further automatise the process, the GUI incorporates the option to save or load parameters in the File tab (see above image). If the specific settings are saved once as GPF parameter file (XML), the user can reload them at any time. For example the settings for this case would generate an xml with the following content:

&ltparameters>
  &ltcoverage_factor&gt1.0</coverage_factor>
  &ltband_names&gtB3,B8A,B12</band_names>
  &ltInstrument_noise&gtfalse</Instrument_noise>
  &ltOOF_straylight-systematic&gttrue</OOF_straylight-systematic>
  &ltOOF_straylight-random&gttrue</OOF_straylight-random>
  &ltCrosstalk&gtfalse</Crosstalk>
  &ltADC_quantisation&gtfalse</ADC_quantisation>
  &ltDS_stability&gttrue</DS_stability>
  &ltGamma_knowledge&gttrue</Gamma_knowledge>
  &ltDiffuser-absolute_knowledge&gttrue</Diffuser-absolute_knowledge>
  &ltDiffuser-temporal_knowledge&gttrue</Diffuser-temporal_knowledge>
  &ltDiffuser-cosine_effect&gttrue</Diffuser-cosine_effect>
  &ltDiffuser-straylight_residual&gttrue</Diffuser-straylight_residual>
  &ltL1C_image_quantisation&gtfalse</L1C_image_quantisation>
</parameters>

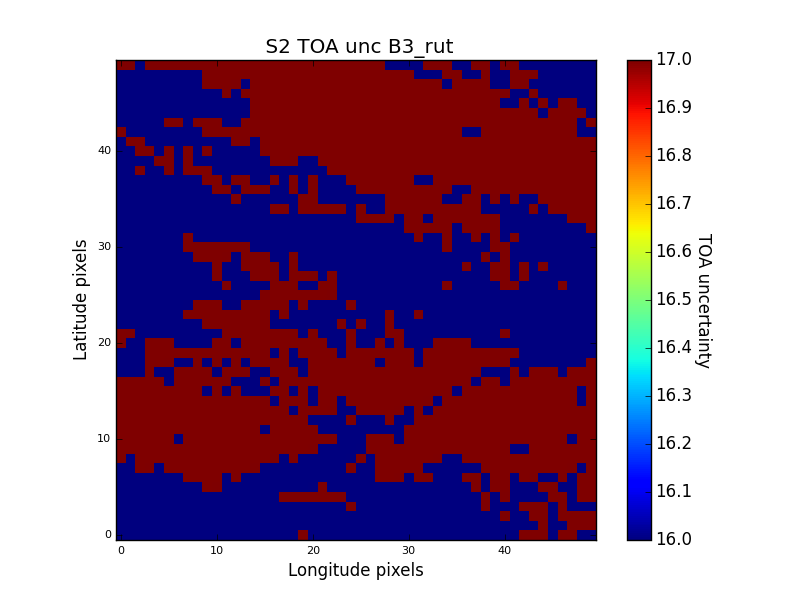

The result is an uncertainty image with only correlated components. An example for S2A B3 in a 500m ROI in Gobabeb is shown below:

The result has minimum uncertainty variations (from 1.6% to 1.7%) and the value of either one pixel or the mean uncertainty over an specific area can be taken as an approximmation of the uncertainty associated to a pixels' mean.

The approach is very simple but has several limitations. For example, for ROIs of just a few pixels, the assumption that the random effects become insignificant may not be sufficient. Thus, this method must be tested to understand the validity of the ROI size at which this assumption is valid. The method also does not provide flexibility to cope with situations where the effect cannot be considered either perfectly correlated or perfectly uncorrelated.

Monte-Carlo pixel uncertainty propagation

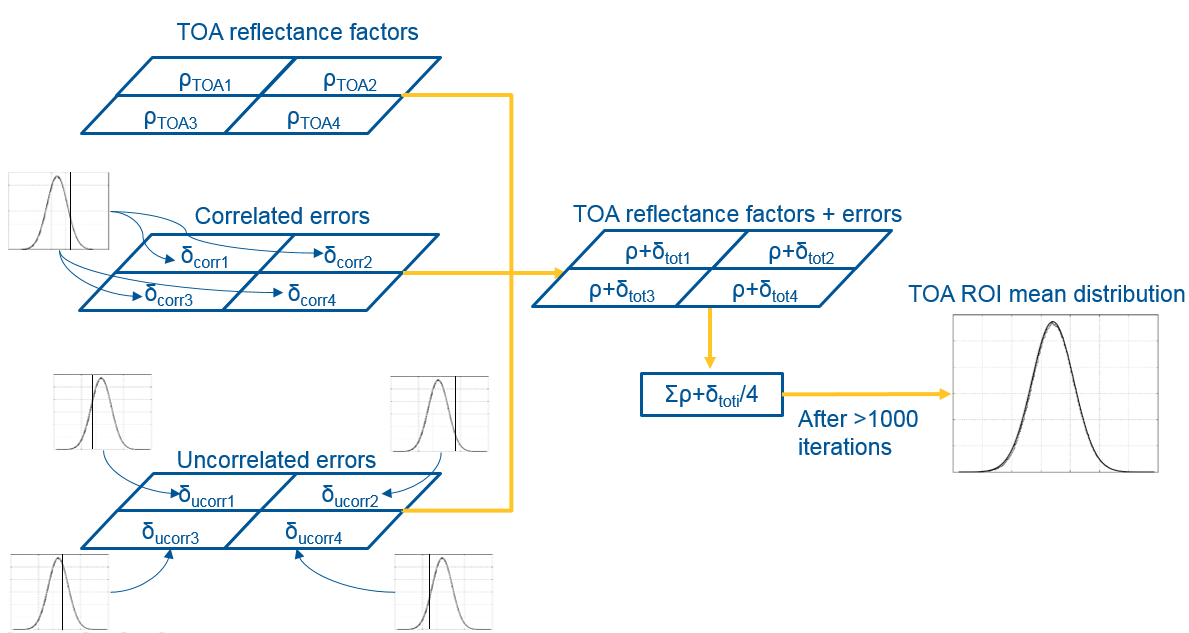

The Monte-Carlo Method (MCM) determines the mean TOA reflectance factor for a ROI from the pixels over many iterations. At each iteration, the error associated with the reflectance factor is drawn from the distribution of each uncertainty contribution. If the uncertainty contribution is correlated between the pixels, the same sample is used for all the pixels in the ROI, whereas, if the uncertainty contribution is uncorrelated, a different error is drawn from the distribution for each pixel. Where there is partial correlation, two separate errors are drawn, one that is common to all pixels and one which is different from pixel to pixel. The distributions are set as normal or uniform distributions with a spread of values directly linked to the uncertainty as calculated directly from the S2-RUT. This uncertainty is obtained by generating an image of the specific uncertainty contribution. The method is illustrated below:

Running the Monte-Carlo uncertainty propagation

The RUT does incorporate from version 2, the possibility to replicate a full Monte-Carlo uncertainty propagation of the pixels in a ROI. A script named s2roiunc_test.py is accessible to the users at RUT-repository (under snap-rut/src/test/python/). The process is not straightforward but here below the execution is detailed step-by-step:

• Select the S2 L1C product. E.g. S2A_MSIL1C_20170609T084601_N0205_R107_T33KWP_20170609T090644.SAFE
• Process its uncertainty image in BEAM-DIMAP format for the desired bands (all uncertainty contributions must be selected) E.g.B3, B8A and B12. Save it with the default extension i.e. S2 product name + _rut.
• Process its uncertainty image in BEAM-DIMAP format for the desired bands but with only spatial and temporal correlated components as explained in the Section Select and deselect contributors. Save it with the extension _rutroi in the same folder as the previous uncertainty product.
• 4) Process uncertainty images of specific contributors in BEAM-DIMAP format for the desired bands. Do this by only selecting the specific contributor in the GUI each time and save the uncertainty product in the same folder as the previous ones. For each specific contributor, specify the output product with the default S2 product name plus a specific tag for each one as follows: _rut.

  Contributor	Tag
  Instrument noise	_rutunoise
  OOF straylight systematic	_rutu_stray_sys
  ADC quantisation	_rutADC
  DS stability	_rutds
  L1C image quantisation	_rutuL1Cquant

• Set the correct parameters in the script. Here below shows the global variables that must be specified in the script.

  ITERPOINTS = 2000 # Number of iteration points that MonteCarlo performs # append the two folder directories so that can import the classes inside. ROI_PATH = '/home/data/UncertaintyGobabeb' # contains the uncertainty products for each site and stores the results S2_DATA = '/home/data/S2Gobabeb' # here the specified S2 L1C products are read # It is only prepared to process the *.dim files. UNC_FILE = "S2A_MSIL1C_20170609T084601_N0205_R107_T33KWP_20170609T090644_rut.dim" ROIUNC_FILE = "S2A_MSIL1C_20170609T084601_N0205_R107_T33KWP_20170609T090644_rutroi.dim" S2FILE = os.path.join("S2A_MSIL1C_20170609T084601_N0205_R107_T33KWP_20170609T090644.SAFE", "MTD_MSIL1C.xml") LAT = -23.6 LON = 15.119 # In order to work, the ROI width and height must be the same. W = 500 H = 500

  These settings read the S2 product (S2FILE) from the S2DATA folder. The UNC_FILE and ROIUNC_FILE are contained in ROI_PATH. Note that this same folder must also contain the uncertainty images of specific contributors.Here LAT,LON,W,H describe the latitude, longitude, width and lenght of the ROI respectively. In this version of the script, both width and length must be set at the same value

• Run the script E.g. in a python console as follows:

  >>import sys >>sys.path.append("PATH_TO_SNAP-RUT/snap-rut/src/test/python") >>import s2roiunc_test >>s2roiunc = s2roiunc_test.S2ROIuncprocessor() >>s2roiunc.MCMmethod()

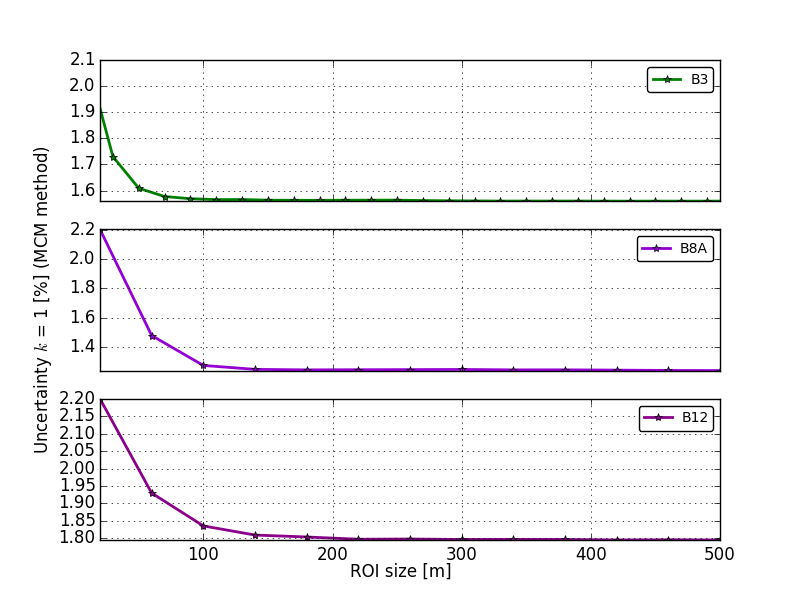

• Results will be stored in the folder set at ROI_PATH. For the settings here described this is the plot containing the MonteCarlo simulation:



References

• [1] Gorro�o, J., Hunt, S., Scanlon, T., Banks, A., Fox, N., Woolliams, E., et al. (2017). Providing uncertainty estimates of the Sentinel-2 Top-of-Atmosphere measurements for radiometric validation activities. European Journal of Remote Sensing(Submitted to special issue "Sentinel-2 data calibration and validation"). Gorro�o, J., Hunt, S., Scanlon, T., Banks, A., Fox, N., Woolliams, E., et al. (2017). Providing uncertainty estimates of the Sentinel-2 Top-of-Atmosphere measurements for radiometric validation activities. European Journal of Remote Sensing(Submitted to special issue: Sentinel-2 data calibration and validation).
• [2] BIPM, IEC, IFCC, ILAC, ISO, IUPAC, IUPAP and OIML (2008). Guide to the Expression of Uncertainty in Measurement, JCGM 100:2008 (PDF). Guide to the Expression of Uncertainty in Measurement, JCGM 100:2008 (PDF).
