EOMasters Toolbox Pro | |
This processor GUI consists of two tabs. The first tab,
I/O Parameters, allows to specify the input and output
parameters. The second tab, Processing Parameters,
allows to specify the parameters for the processing.

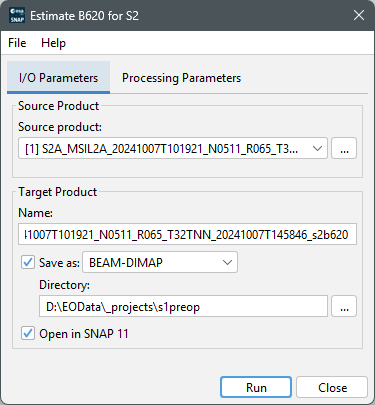

This defines the source product on which the processing is performed. Either select one of the products already opened in the application or select a new one by opening a product selection dialog. The product must contain a band at 665 nm.
Name
Used to specify the name of the target product. By default, it is
set to the name of the source product with the suffix '_s2b620'
appended.
Save as
Used to specify whether the target product should be saved to the
file system. The dropdown list provides a list of available file
formats. The text field shows the path to the directory where the
processing result will be saved. You can edit the text field
directly or select a directory via the '...' button.
Open in SNAP
Used to specify whether the target product should be opened in
SNAP. If the target product is not saved, it is opened in SNAP
automatically.

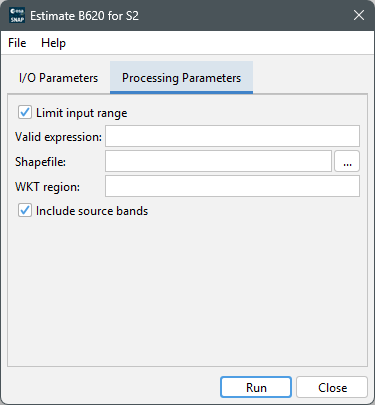

Limit input range:
Whether the input range should be limited to the reliable value
range. The range is defined * as [0, 0.065].
Valid expression:
This expression defines which pixels are valid for processing. It
must follow the rules of Band Maths.
Shapefile:
A shapefile can be selected to define the valid region for the
processing.
WKT region:
A geometry using WGS84 coordinates can be specified following the
WKT Format
Include source bands
Whether to include source data or only generate the band at 620
nm.
