TOPSAR Split

Sentinel-1 TOPSAR Split

The TOPSAR Split operator provides a convenient way to split each subswath with selected bursts into a separate product. This operator is the first processing step in the TOPS InSAR processing chain.

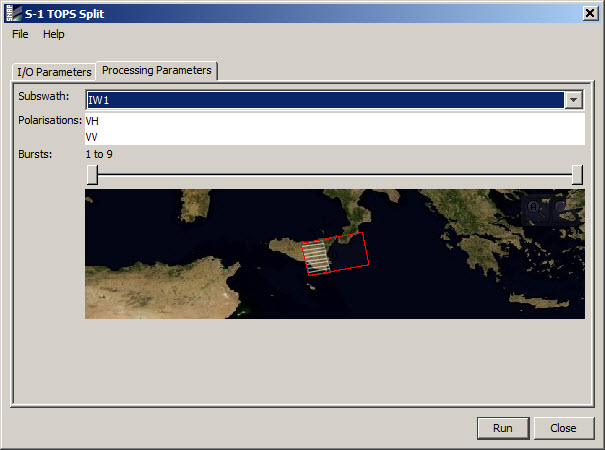

The user may select the desired subswath with desired bursts and polarisations.

Input

• The input to this operator should be Sentinel-1 multi-swath SLC product (e.g. IW product with VH and VV polarisations).


Output

• The output of the operator is the split Sentinel-1 product with user selected subswath, bursts and polarisation(s).


Parameters Used

• Subswath: The subswath for the split product.

• Polarisation: The polarisation(s) for the split product.
• Bursts: The bursts for the spilt product.
