Sentinel-1 SLC to GRD

Sentinel-1 SLC to GRD

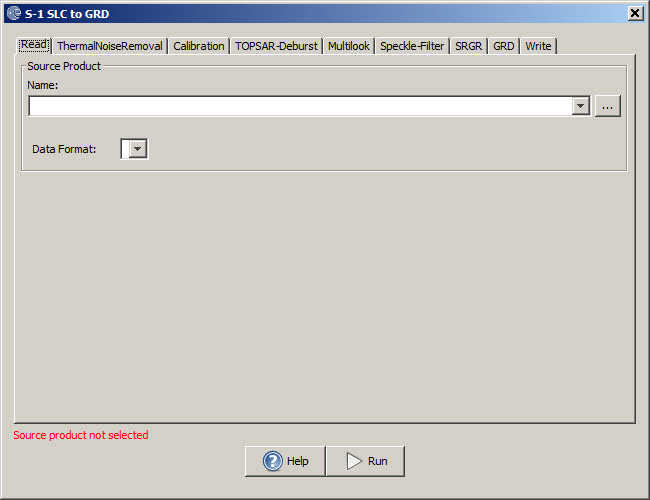

The Toolbox provides a graph which applies processing to a Sentinel-1 SLC product in order to generate a product similar to a GRD product generated by the IPF. However, the processing applied is not identical.
This will include:

• Thermal noise removal
• Calibration
• Deburst and merge for TOPS data
• Multilooking
• Speckle filtering
• Slant Range to Ground Range conversion
• Scaling to 16 bit
• Updating metadata

For the IW and EW GRD products, all the bursts in all sub-swaths are seamlessly merged to form a single, contiguous, ground range, detected image.

Input

• The input to this operator should be Sentinel-1 SLC product.

Output

• The output of the operator is a GRD like product.

Parameters Used

• For the parameters used for each operator in the graph, user is referred to the on-line help of the corresponding operator.


GRD

The GRD Post Processing operator updates the product type, product name and other file ids in the metadata to make it a true GRD product.

Input

• The input to this operator should be the GRD product generated by the S-1 SLC to GRD operator.

Output

• The output of the operator is the same product with the metadata and product name updated.

Parameters Used

• Non
